Line & Condensed Structural Formulas

Eight condensed structural formulas are written in the following table. Twelve abbreviated or line structures (A through L) are displayed beneath the table. For each of the eight condensed formulas, enter the letter corresponding to the comparable line structure in the answer box to its right.
(CH3)3CCH2CH(CH3)C2H5 (CH3)2CHCHBrCH2CH3 ....... CH3CH(OH)CH(CH3)C2H5 (C2H5)2C=CHCHO .........
(CH3)2NCH2CH=CH2 ...... CH3(CH2)2CH(CH3)CO2H CH3CH2CO2CH(C2H5)2 .... CH3CHClCHClCOCH2CN

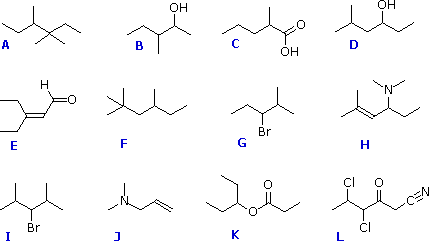

Grid of 12 line-structure formulas labeled A through L: alkanes, alkenes, alcohols, halides, an amine, aldehyde, ester and acid for structure matching
